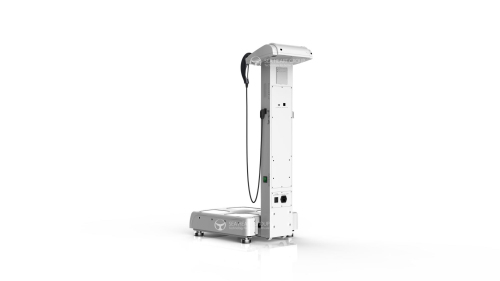

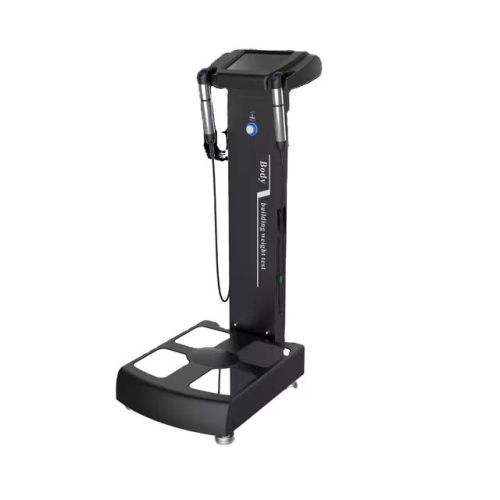

HBA-GS6.5/GS7 Human-body Elements Analyzer Machine

Item No.: HBA-GS6.5 & HBA-GS7
Newest body composition analyzer  HBA-GS7 The newest human body elements analysis equipment applies the accurate measurement of an AVR microcomputer controller.
Description Sepcifications Features&Advantages FAQs
Description

Newest body composition analyzer  HBA-GS7

The newest human body elements analysis equipment applies the accurate measurement of an AVR microcomputer controller, based on the new statistics method DXA, analysis of human elements: fat, weight BMI(body mass index), non-fat, and other health indicators through multi-frequency bioelectrical impedance analysis method (MFBIA), give instruction on guests’ health, and provide a scientific basis for losing weight effectively.
Human body elements analysis equipment
Which is considered an epoch-making result of the health industry. It is a health consultant, and it provides an independent analysis of the health date for each test.

Applicable to major fitness, body centers, medical centers, senior clubs, and supporting projects for losing weight.DSM-BIA 8 Electrode Bioelectrical Impedance Technology
Accurately measure human body composition data by direct segmental multi-frequency bioelectrical impedance measurement.
accurate measurement
WiFi Data Sync
The data is automatically uploaded to the cloud, and the physical test data can be managed in real-time on the management platform, and the changing trend of the physical test data can be analyzed.
AI Visual Body Recognition
AI Vision Human Body High and low shoulders, humpback, pelvic forward lean, X/O legs, scoliosis, head roll knee hyperextension Postural threat and risk assessment.
22-inch high-definition LCD touchscreen
The 22-inch high-definition touch screen is more in line with the operating habits of the mobile era. Health data is directly displayed in a graphical manner, and health risks are clear at a glance.

Human body elements analysis equipment, applies the accurate measurement of AVR microcomputer controller, based on the new statistics method DXA, analysis of human elements: fat weight BMI(body mass index), non-fat and other health indicators through multi-frequency bioelectrical impedance analysis method (MFBIA). give instruction on guests' health. and provide a scientific basis for losing weight effectively. Which is considered an epoch-making result of the health industry. If is health consultant, it provides an independent analysis of health data for each test. Applicable to major fitness, body centers, medical centers, senior clubs, and supporting projects for losing weight.

Body Composition Analyzer Principle:

  1. Human body elements analysis equipment applies the accurate measurement of AVR microcomputer controller, based on the new statistics method DXA, analysis of human elements: fat weight BMI(body mass index), non-fat and other health indicators through multi-frequency bioelectrical impedance analysis method (MFBIA). give instruction on guests' health. and provide a scientific basis for losing weight effectively. Which is considered as an epoch-making result of the health industry.
  2. If is a health consultant, it provides an independent analysis of health data for each test.
  3. Applicable to major fitness, body centers, medical centers, senior clubs, and supporting projects of losing weight.
Sepcifications
Test Method
Multi-frequency bioelectrical impedance analysis (MFBIA)
Test Part
bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk, left lower extremity, right lower extremity
Test Frequency
Three different frequency(20KHZ, 50KHZ, 100KHZ)
Electrode Method
8 point contact eletrode
Computing method of body components
Do not estimate through empirical value
Output Value(25)
TBW, protein, mineral salt, Body fat, bone weight, Weight, IBW, fat-free weight, SMM(Skeletal muscle), BMI(Body mass index), PDF(percentage of body fat), WHP(waist-hip ratio), moisture ratio, Obesity diagnosis, nutritional assessment, Weight assessment, obesity assessment, Goal weight, Weight control, Fat control, Muscle control, Health assessment, basic metabolism, bioelectrical impedance.
Rated current
less than 180μA
Power
Input power: AC100~240V, 50/60HZ
Screen
320*240 STN LCD Touching Screen
Operation Language
English and Multiple Language Option
Values Storage
50000×10 and SD Card unlimited expansion is available
External Storage
SD Card transfer to a computer for large storage
External Interfaces
RJ-45, USB2
Printer Interfaces
USB
IC Card System
standard IC card control
Printer
A4 color paper ink-jet printer(manufacturers appoint the model), internally installed thermal printer
MEAS. Of Package
49CM*50CM*118CM, GW: 40KG; NW:32KG. MEAS. Of printer package: 63CM*44CM*38CM
Test time
No more than 2 minutes
Features&Advantages

Advantages of the new body composition analyzer:

1. Accurate test report data.

2. Use 3 different HZ: 20 HZ,50HZ,100HZ

3. 4 polar, 8 pcs touch contact electrodes.

4. Can connect with Laser printers directly.

5. Can deliver the data to mobile at once by the "Scan QR Code" function of WeChat.

6. Can link with WIFI or Wireless Hotspot.

7. Increase the body parts testing function(right arm, left arm, right leg, left leg, torso).

Indications of analysis:

1. Control in adipose tissue reduction treatments.

2. Body weight control.

3. Analysis of muscle mass in overweight and obesity

4. Analysis of energy consumption and nutrients.

5. Evaluation of rehabilitation treatments during and after treatment

6. Evaluation of exercise plans and specific training

7. Prevention in cardiovascular control, diabetes, and other chronic cataract pathologies or susceptible to continued observation.

Data function:

Grasp the slimming effect to make the slimming treatment, providing the scientific basis.

The reasonable ease and weight control help maintain the best physical strength Distinguish between muscle type overweight and obesity, and find the best control weight method.

Direct energy intake and dietary intake of nutrients in proportion.

Guiding take nutrition recovery measures to promote the hard synthesis muscles.

Evaluation of the rehabilitation treatment effect, guiding scientific body slimming with scientific training, rehabilitation, and nutrition.

Understand and detect teenagers' status of physical health, developing their feasible exercise program.

Understand the environment, nutrition, and other factors on body composition effects.

Know about the difference between similar other group ingredients.

As reduce cardiovascular, diabetes and some cancers, and other chronic disease incidence of important preventive measures.
