HIFU Treatment Depth Guide: When to Use 1.5mm, 3.0mm, and 4.5mm Cartridges
The effectiveness of a High-Intensity Focused Ultrasound (HIFU) treatment relies entirely on operator precision. Firing energy into the wrong anatomical layer won't just result in a poor lift—it can cause unwanted facial fat atrophy or nerve irritation.
Modern HIFU systems come with multiple transducers. Understanding the specific function of the 1.5mm, 3.0mm, and 4.5mm cartridges is critical for any aesthetic practitioner aiming for consistent clinical outcomes.
1.5mm Cartridge: The Epidermal Smoother
The 1.5mm transducer targets the upper dermis and epidermis. The thermal coagulation points are placed very shallowly to refine the skin's surface.
- Clinical Goal: Erasing superficial fine lines, shrinking pore size, and improving overall skin tone and brightness.
- Primary Treatment Areas: Safe for almost all facial areas, including thinner skin zones like the forehead and the delicate peri-orbital region.

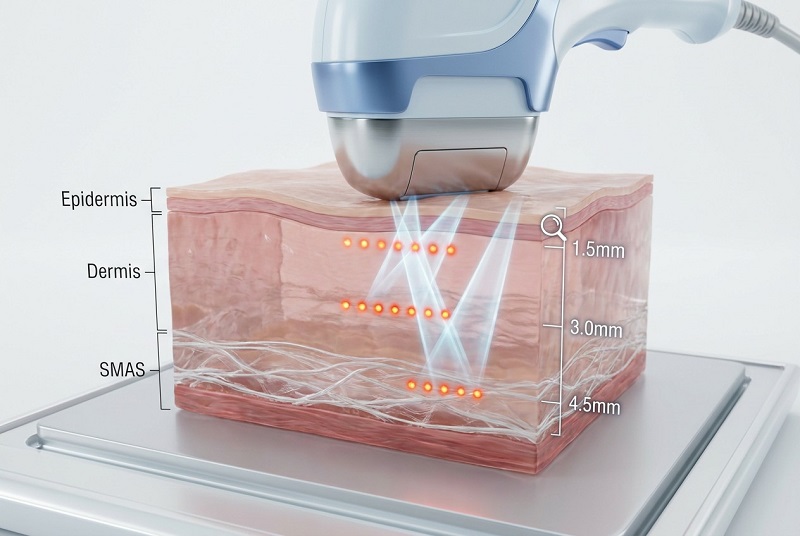

Figure 1: Visualizing the focal points of ultrasound energy across skin layers.
3.0mm Cartridge: The Collagen Builder
The 3.0mm transducer reaches the deep dermis, where structural proteins are manufactured.
- Clinical Goal: Neocollagenesis. Heating this layer to 65°C triggers an aggressive wound-healing response, forcing the production of new collagen and elastin.
- Primary Treatment Areas: Cheeks, neck, and jawline.
- Protocol Tip: This is the core cartridge for "skin tightening" (as opposed to lifting), restoring bounce and elasticity.
4.5mm Cartridge: The SMAS Lifter (The Heavy Lifter)
This is what separates HIFU from every other non-invasive device. The 4.5mm transducer penetrates deep into the subcutaneous tissue to hit the SMAS (Superficial Musculoaponeurotic System) layer.
- Clinical Goal: True tissue suspension and lifting. Contracting the SMAS layer pulls the facial structure upward.
- Primary Treatment Areas: Lower cheeks, jowls, submental (double chin), and neck.

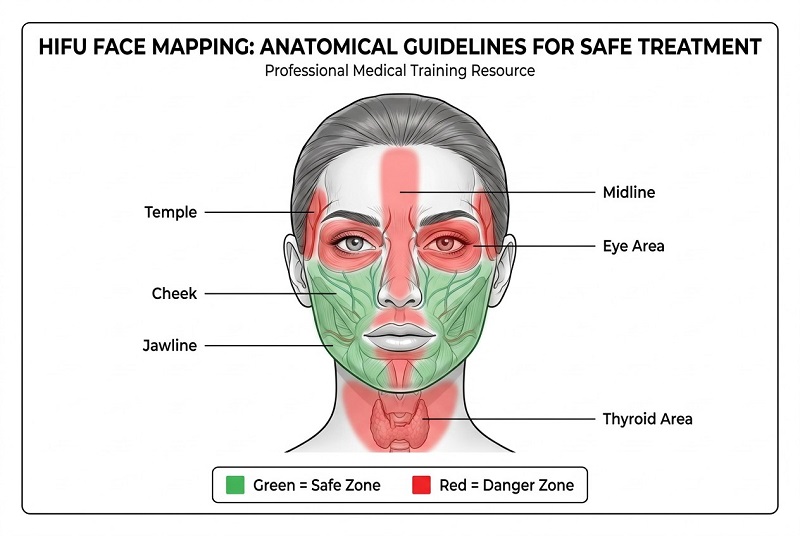

Figure 2: Safety mapping: Identifying 'Green Zones' and 'Danger Red Zones' for deep lifting.
Stacking Depths for 3D Results
The best clinical outcomes are achieved through "stacking." A standard professional protocol involves doing a pass with the 4.5mm to lift the SMAS, followed by a pass with the 3.0mm to tighten the dermis above it.
Equipping your clinic with a professional HIFU machine that provides stable, accurate cartridge depths is the single most important factor in guaranteeing patient safety and securing high-ticket rebookings.
